Name: Streets

Display Field: FULLNAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: Road segments representing centerlines of all roadways. This representation of the road centerlines support address, geocoding, and mapping. It also serves as a source for public works and other agencies that are responsible for the active management of the road network.

Service Item Id: 4142888b62e34935aec7fd96ead8b371

Copyright Text: Hamblen County, City of Morristown, MHGIS

Default Visibility: true

MaxRecordCount: 32000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 2716349.58999741
YMin: 649447.360094823
XMax: 2828530.2399794944
YMax: 744281.650002636
Spatial Reference: 102736  (2274)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [156, 156, 156, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• OIRID ( type: esriFieldTypeString, alias: OIRID, length: 20 )
• CENTERLINEID ( type: esriFieldTypeString, alias: Centerline ID, length: 20 )
• MSAGLINK ( type: esriFieldTypeInteger, alias: MSAGLINK )
• FROMLEFT ( type: esriFieldTypeInteger, alias: Left From Address )
• TOLEFT ( type: esriFieldTypeInteger, alias: Left To Address )
• FROMRIGHT ( type: esriFieldTypeInteger, alias: Right From Address )
• TORIGHT ( type: esriFieldTypeInteger, alias: Right To Address )
• FULLNAME ( type: esriFieldTypeString, alias: Full Road Name, length: 125 )
• ONEWAYDIR ( type: esriFieldTypeString, alias: One Way Indicator, length: 10 , Coded Values: [B: Both Ways] , [FT: From-To] , [TF: To-From] )
• ROUTETYPE ( type: esriFieldTypeString, alias: Road Type, length: 50 , Coded Values: [I: Interstate] , [U: US Highway] , [S: State Highway] , ...8 more... )
• ROADCLASS ( type: esriFieldTypeString, alias: Road Class, length: 20 , Coded Values: [Minor Arterial: Minor Arterial] , [Local: Local] , [Interstate: Interstate] , ...10 more... )
• SHIELD ( type: esriFieldTypeString, alias: SHIELD, length: 30 )
• OWNEDBY ( type: esriFieldTypeSmallInteger, alias: Owned By , Coded Values: [1: Public Works Department] , [2: Tennessee Department of Transportation] , [3: Private] , ...2 more... )
• MAINTBY ( type: esriFieldTypeSmallInteger, alias: Maintained By , Coded Values: [0: Highway Department] , [1: Public Works Department] , [2: Tennessee Department of Transportation] , ...2 more... )
• MUNILEFT ( type: esriFieldTypeString, alias: Municipality on Left, length: 100 )
• MUNIRIGHT ( type: esriFieldTypeString, alias: Municipality on Right, length: 100 )
• MSAGLEFT ( type: esriFieldTypeString, alias: MSAG on Left, length: 35 )
• MSAGRIGHT ( type: esriFieldTypeString, alias: MSAG on Right, length: 35 )
• ESNLEFT ( type: esriFieldTypeString, alias: ESN on Left, length: 5 )
• ESNRIGHT ( type: esriFieldTypeString, alias: ESN on Right, length: 5 )
• ZIPLEFT ( type: esriFieldTypeString, alias: Zip on Left, length: 5 )
• ZIPRIGHT ( type: esriFieldTypeString, alias: Zip on Right, length: 5 )
• STATELEFT ( type: esriFieldTypeString, alias: State on Left, length: 2 , Coded Values: [AL: Alabama] , [AK: Alaska] , [AS: American Samoa] , ...56 more... )
• STATERIGHT ( type: esriFieldTypeString, alias: State on Right, length: 2 , Coded Values: [AL: Alabama] , [AK: Alaska] , [AS: American Samoa] , ...56 more... )
• SPEEDLIMIT ( type: esriFieldTypeSmallInteger, alias: Speed Limit )
• LASTUPDATE ( type: esriFieldTypeDate, alias: Last Update Date, length: 8 )
• LASTEDITOR ( type: esriFieldTypeString, alias: Last Editor, length: 50 )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• ALT_FULLNAME ( type: esriFieldTypeString, alias: ALT_FULLNAME, length: 60 )
• ROW_WIDTH ( type: esriFieldTypeSmallInteger, alias: Right of Way Width )
• PAVEMENT_WIDTH ( type: esriFieldTypeSmallInteger, alias: Pavement Width )
• YLATITUDE ( type: esriFieldTypeDouble, alias: YLATITUDE )
• XLONGITUDE ( type: esriFieldTypeDouble, alias: XLONGITUDE )
• DRIVEABILI ( type: esriFieldTypeString, alias: DRIVEABILITY, length: 10 , Coded Values: [Excellent: Excellent] , [Good: Good] , [Fair: Fair] , ...3 more... )
• Length_MI ( type: esriFieldTypeDouble, alias: Length Miles )
• WARD ( type: esriFieldTypeSmallInteger, alias: City Ward )
• DISTRICT ( type: esriFieldTypeSmallInteger, alias: District )
• CROSS_ST1 ( type: esriFieldTypeString, alias: From Cross Street, length: 25 )
• CROSS_ST2 ( type: esriFieldTypeString, alias: To Cross Street, length: 35 )
• COUNTY_L ( type: esriFieldTypeString, alias: County Left, length: 30 )
• COUNTY_R ( type: esriFieldTypeString, alias: County Right, length: 30 )
• F_ELEV ( type: esriFieldTypeSmallInteger, alias: F_ELEV )
• T_ELEV ( type: esriFieldTypeSmallInteger, alias: T_ELEV )
• STATUS ( type: esriFieldTypeString, alias: STATUS, length: 20 , Coded Values: [Current: Current] , [Pending: Pending] , [Retired: Retired] , ...3 more... )
• NUMLANES ( type: esriFieldTypeSmallInteger, alias: # of Lanes )
• ProposedYR ( type: esriFieldTypeString, alias: Proposed Maintenance FY, length: 10 )
• CompletedYR ( type: esriFieldTypeString, alias: Completed Maintenance FY, length: 10 )
• ResurfType ( type: esriFieldTypeString, alias: Resurface Type, length: 20 , Coded Values: [Paving: Paving] , [Rejuvenation: Rejuvenation] )
• SanitationPickupDay ( type: esriFieldTypeString, alias: Sanitation Pickup Day, length: 20 , Coded Values: [Monday: Monday] , [Tuesday: Tuesday] , [Wednesday: Wednesday] , ...2 more... )
• SanitationTruckRoute ( type: esriFieldTypeString, alias: Sanitation Truck Route, length: 5 , Coded Values: [546: 546] , [547: 547] , [548: 548] , ...1 more... )
• PARITYLEFT ( type: esriFieldTypeString, alias: Parity Left, length: 1 , Coded Values: [O: Odd] , [E: Even] , [B: Both] , ...1 more... )
• PARITYRIGHT ( type: esriFieldTypeString, alias: Parity Right, length: 1 , Coded Values: [O: Odd] , [E: Even] , [B: Both] , ...1 more... )
• SUBNAME ( type: esriFieldTypeString, alias: Subdivision Name, length: 50 )
• GEOMOD ( type: esriFieldTypeString, alias: Geometry Modification Type, length: 75 )
• GEOSRCE ( type: esriFieldTypeString, alias: Geometry Modification Source, length: 45 )
• GEODATE ( type: esriFieldTypeDate, alias: Geometry Modification Date, length: 8 )
• ATTMOD ( type: esriFieldTypeString, alias: Attribute Modification Type, length: 75 )
• ATTSRCE ( type: esriFieldTypeString, alias: Attribute Modification Source, length: 45 )
• ATTDATE ( type: esriFieldTypeDate, alias: Attribute Modification Date, length: 8 )
• ADDR_TYPE ( type: esriFieldTypeString, alias: Address Range Type, length: 1 , Coded Values: [A: Actual] , [P: Potential] )
• fedroute ( type: esriFieldTypeString, alias: Federal Route, length: 10 )
• fedrtetype ( type: esriFieldTypeString, alias: Federal Route Type, length: 20 , Coded Values: [Freeway: Freeway] , [Highway: Highway] , [Interstate: Interstate] , ...2 more... )
• stroute ( type: esriFieldTypeString, alias: State Route, length: 10 )
• strtetype ( type: esriFieldTypeString, alias: State Route Type, length: 20 , Coded Values: [Freeway: Freeway] , [Highway: Highway] , [Interstate: Interstate] , ...2 more... )
• precenterlineid ( type: esriFieldTypeString, alias: Previous Centerline ID, length: 20 )
• PREDIR ( type: esriFieldTypeString, alias: Prefix Directional, length: 2 , Coded Values: [N: N] , [S: S] , [E: E] , ...5 more... )
• PRETYPE ( type: esriFieldTypeString, alias: Prefix Type, length: 5 , Coded Values: [AVE: Avenue] , [ALY: Alley] , [ANX: Anex] , ...207 more... )
• NAME ( type: esriFieldTypeString, alias: Street Name, length: 40 )
• TYPE ( type: esriFieldTypeString, alias: Street Type, length: 5 , Coded Values: [AVE: Avenue] , [ALY: Alley] , [ANX: Anex] , ...207 more... )
• SUFDIR ( type: esriFieldTypeString, alias: Suffix Directional, length: 2 , Coded Values: [N: N] , [S: S] , [E: E] , ...5 more... )
• POSTMOD ( type: esriFieldTypeString, alias: Post Modifier, length: 5 , Coded Values: [AVE: Avenue] , [ALY: Alley] , [ANX: Anex] , ...207 more... )
• NG_Sratus ( type: esriFieldTypeSmallInteger, alias: NG911 Status , Coded Values: [730: ACTIVE] , [734: PROPOSED] , [736: POTENTIAL] , ...1 more... )
• TFCOST ( type: esriFieldTypeDouble, alias: To-From Cost )
• FTCOST ( type: esriFieldTypeDouble, alias: From-To Cost )
• SnowRoute ( type: esriFieldTypeString, alias: Snow Route, length: 5 )
• EAMID ( type: esriFieldTypeString, alias: EAM ID, length: 20 )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

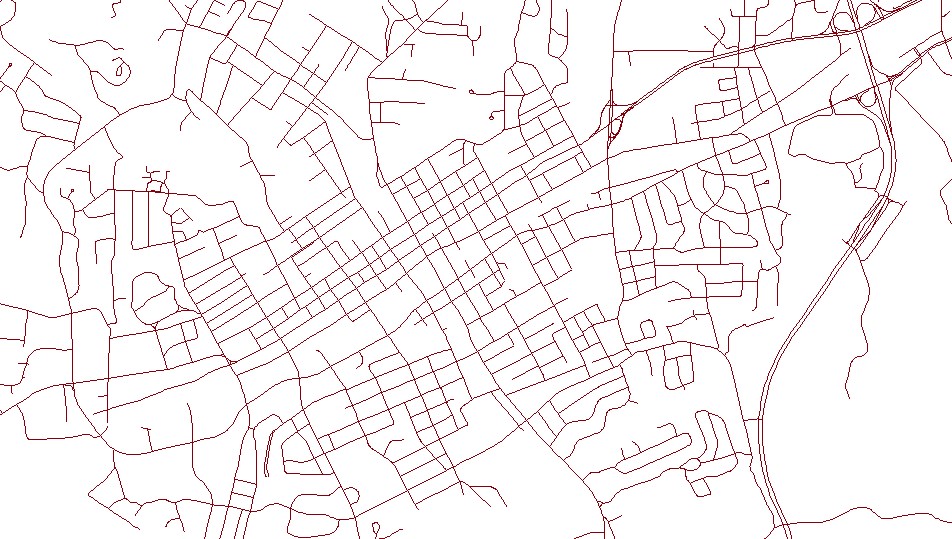

  Iteminfo   Thumbnail   Metadata
